ACOPOWER Midas 30A MPPT Solar Charge Controller 100V PV Negative Ground with MT50 Remote Meter for 12V/24V AGM & LiFePO4 Batteries | Solar Panel Controller for RV, Boat, Off-Grid Power System | 2021 New Model
Free shipping on all orders over $50
7-15 days international
30 people viewing this product right now!
30-day free returns
Secure checkout
95390974
Description
Midas 30A MPPT Charge Controller The Midas 30A is ACOPOWER's MPPT charge controller. It is a negative ground controller. This ensure compatibility with any negative ground system, which is the standard and most conventional way of grounding. It is 30 amps 12V/ 24v auto continuous charging capacity, enables use of up to 12V/390watts, 24V/780watts. General Safety Information Read all of the instructions and cautions in the manual before beginning the installation.There are no serviceable parts for this controller. Do NOT disassemble or attempt to repair the controller.Do NOT allow water to enter the controller.Make sure all connections going into and from the controller are tight. Midas MPPT Charge Controller 30A Midas MPPT Charge Controller Specifications Nominal System Voltage: 12/24VDC Auto Battery Input Voltage Range: 8V～32V Battery Type: 1. Lead-acid battery including Sealed (default), Gel, Flooded and User; 2. Lithium Battery including LiFePO4, Li and User; Rated Charge Current: 30A Rated charge Power: 390W/12V 780W/24V Max. PV Open Circuit Voltage: 100V (1) 92V (2) MPPT Voltage Range: (Battery Voltage+2V) ~72V RS485 Interface: 5VDC/200mA(RJ45) Compatible Battery Types Sealed/AGMGelFloodedLithium-ionLiFePO4User MPPT technology Automatically detect 12V or 24V DC system voltages Innovative MPPT technology with high tracking efficiency up to 99.5% and peak conversion efficiency of 98% Remote Meter Automatic identify the controller, and display the type, model and relevant parameter dataLarge-screen multifunction LCD displays all the operational data and system working statusReal-time energy statistics recording More applications More applications for Home, RV and Yacht
Features
Advanced Charge Control Technology Maximum Power Point Tracking (MPPT) with high tracking efficiency no less than 99.50%; peak conversion efficiency of 98%; Ultra-fast tracking speed; accurately recognizing and tracking of multiple power point; 3-stage charge with PWM output

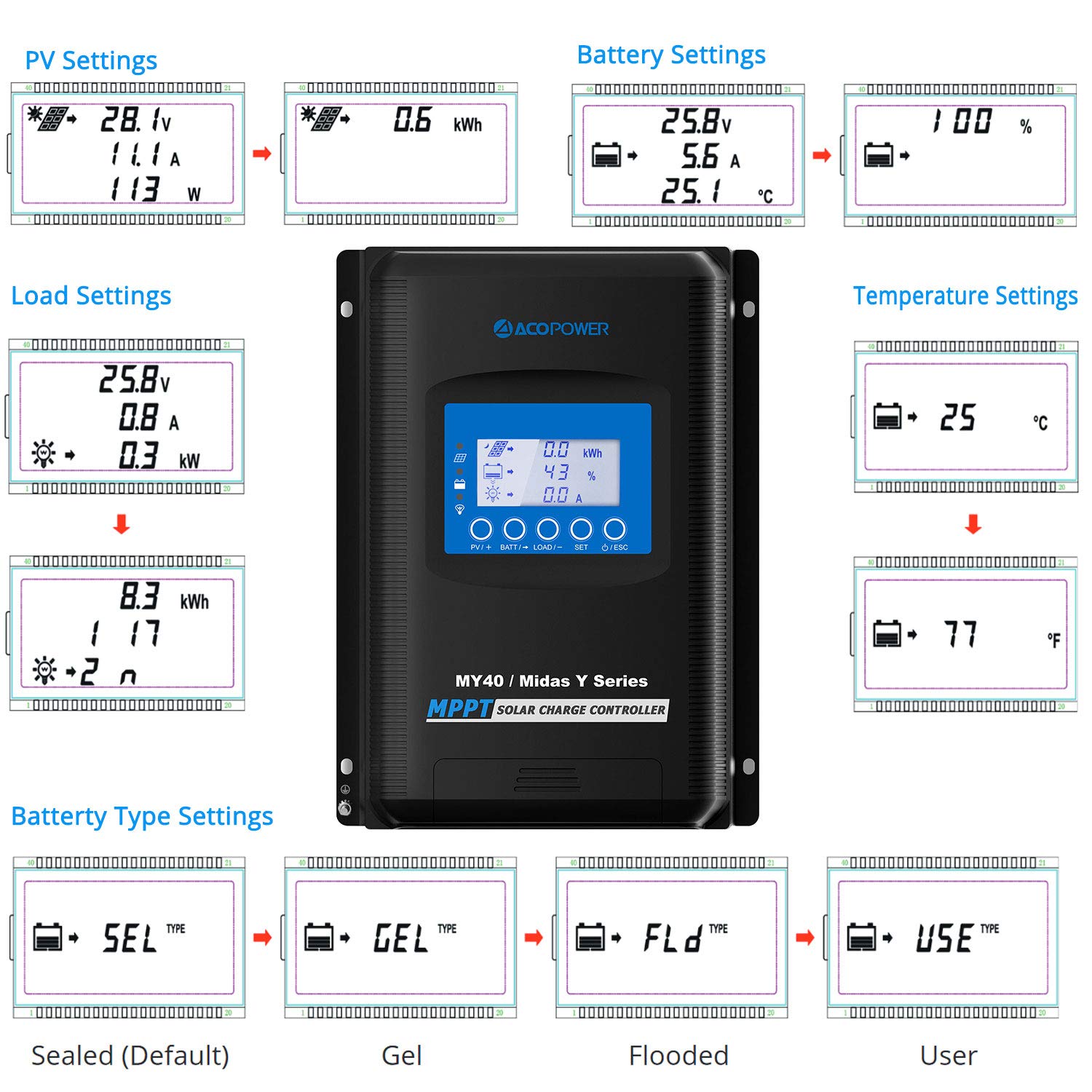

Easy Monitor and Operate Multi-function LCD displays system information intuitively; User programmable for battery types, load control etc, via PC software or remote meter MT-50
No Worries with Electronic Protections PV reverse polarity protection; PV short circuit protection; PV over current alarm protection; Battery overcharge protection; Battery over discharge protection; Battery reverse polarity protection; Load short circuit protection; Load overload protection; Overheating protection
Build-up with 12v /24v battery (Automatic system voltage recognition); charged by solar panels according to the system, recommend Acopower 100Watt ASIN B01586LFJ0 or all black panels ASIN B01G53TUIS
100% Money back for any reasons you are not satisfied. 18 Month Warranty. USA Based More than 9 Years Solar Industry Company provides you excellent customer service and technical support.
