High Precision Cloudray Inductive Proximity Sensor Switch for CO2 Laser Engraver & Cutter - Perfect for CNC Machines, Automation Systems, and Industrial Applications

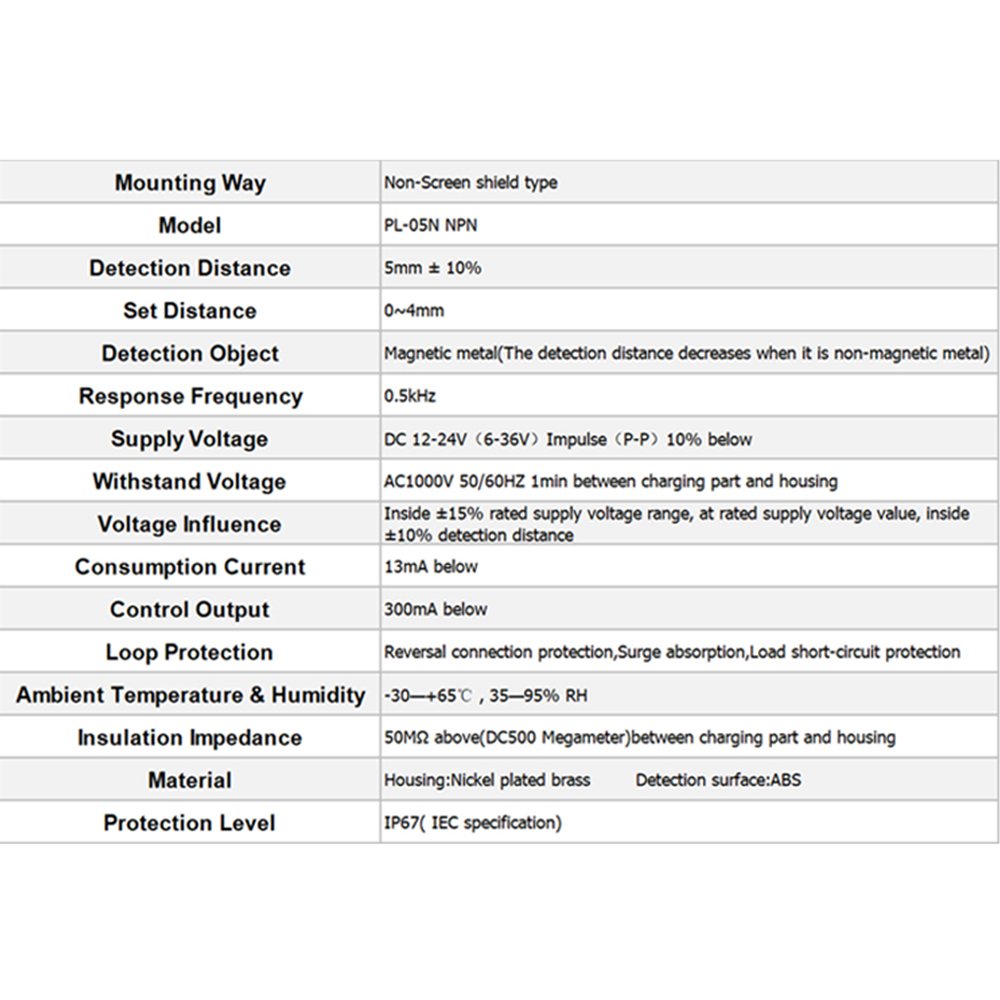

Proximity Switches Product Size Specification Mounting Way Non-Screen shield type Model PL-05N NPN Detection Distance 5mm ± 10% Set Distance 0~4mm Detection Object Magnetic metal(The detection distance decreases when it is non-magnetic metal) Response Frequency 0.5kHz Supply Voltage DC 12-24V（6-36V）Impulse（P-P）10% below Withstand Voltage AC1000V 50/60HZ 1min between charging part and housing Voltage Influence Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance Consumption Current 13mA below Control Output 300mA below Loop Protection Reversal connection protection,Surge absorption,Load short-circuit protection Ambient Temperature & Humidity -30—+65℃ , 35—95% RH Insulation Impedance 50MΩ above(DC500 Megameter)between charging part and housing Material Housing:Nickel plated brass Detection surface:ABS Protection Level IP67( IEC specification) Product Details Anti-interference Flame Retardant Plastic ABS Wire Length 1.9M
