Description
Technical Specifications PRODUCT VARIANTS 0327-01 - 327 Auto Transfer Switch Control Module (230 Volt) STORAGE TEMPERATURE RANGE -40°C to +80°C VOLTAGE RANGE 85V to 150 V AC (L-N) Weight 0.3 pounds Dimensions 3 x 3.5 x 2.5 In DSE331 Original - Made in UK | Auto Transfer Switch Control | DSE0331-01 Repl... DSE334 Original - Made in UK | Auto Transfer Switch DSE335 Original - Made in UK | Auto Transfer Switch Add to Cart Add to Cart Add to Cart Customer Reviews — 5.0 out of 5 stars 1 — Price $469.99$469.99 $589.99$589.99 $819.99$819.99 OVERALL SIZE 8 × 8 × 4 in 215 mm x 158 mm x 42 mm (8.5” x 6.2” x 1.6”) 240 mm x 181 mm x 42 mm (9.4” x 7.1” x 1.6”) VOLTAGE RANGE 8 V to 35 V Continuous 15 V to 333 V AC (L-N) 15 V to 333 V AC (L-N) MAXIMUM OPERATING CURRENT 168 mA at 12 V, 80 mA at 24 V 292 mA at 12 V, 167 mA at 24 V 480 mA at 12 V, 360 mA at 24 V WEIGHT 0.79 pounds 1.14 pounds 1.98 Pounds
Features
We are DSE distributors. DSE327-02 Original - Made in UK

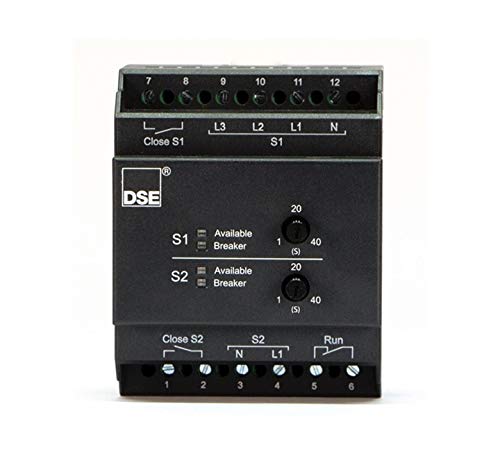

DSE327-02 is an Automatic Transfer Switch Control Module designed to monitor the voltage of an incoming AC supply from two different sources.
This could be from both generator or mains (utility), or a combination of both. The module monitors S1 (Source 1) and in the event of a failure issues a start command to S2 (Source 2).
Once S2 is available and producing an output within limits, the module controls the transfer device and switches the load from S1 to S2.
Once the S1 supply returns to within limits, the module commands a load return to S1 and shuts down S2. Various timing sequences are available to prevent nuisance starting on minor supply breaks. LED indicators. Provides visual indication for operating and warning status.
