Alomejor 36V/48V 250W Electric Motor Controller Kit - KT 15A Controller with LCD3 Display, 130X Throttle & 8C Sensor - Compatible with E-Bikes & Electric Scooters - Perfect for DIY Repairs & Upgrades
Free shipping on all orders over $50
7-15 days international
11 people viewing this product right now!
30-day free returns
Secure checkout
60265184
Description
Specification: Material: Aluminum Alloy + Plastic Product Color: As Pictures Shown Controller Box Size: Approx. 82x52x31mm / 3.2x2.0x1.2in LCD Display Meter Size: Approx. 96x65mm / 3.8x2.6in Product Weight: Approx. 647g / 22.8oz Controller Connector Type: Ordinary Connector (except for the waterproof connector of the motor cable) Controller Type: Square Wave Controller Controller Rated Voltage: DC 36V/48V Controller Rated Current: 7A Controller Maximum Current: 15±1A Controller Speed Setting: 1 4.2V Controller Brake Input: Low Level Controller Low Voltage Protection: DC 30/40±0.5V Applicable Motor Power: 250W LCD Display Meter Function Description: Up button, switch button, down button, battery capacity indicator, backlight and headlights, brake display, one way time, total travel time, power display, motor Celsius temperature, motor Fahrenheit temperature, ambient Celsius temperature , Ambient temperature in Fahrenheit, 6km/h thrust assist, riding speed (metric), riding speed (imperial), maximum speed, average speed, distance (metric), distance (imperial), riding distance, total distance, battery voltage, power assist sensor sign, cruise function. Package List: 1 x 15A Controller 1 x LCD3 Display Meter 1 x Meter Mounting Frame 4 x Meter Mounting Bracket Gasket 2 x Meter Mounting Frame Screw 1 x Meter Mounting Manual 1 x Throttle 1 x 8C Power Assist Sensor 1 x Controller Wiring Manual
Features
SAFE AND STABLE DESIGN: The controller shell is made of high quality aluminium alloy metal with groove design, which has a good heat dissipation function and can protect the internal circuit to avoid thermal overload. This controller set allows stable and sensitive speed control of braking and direction changes. The LCD display meter installation accessories are complete, and the installation is convenient.
WITH LCD3 DISPLAY METER: The LCD3 Display Meter can display many useful data, you can easily view these data, such as power display, backlight display, headlight display, brake display, ambient temperature, motor temperature, one way time, total travel time, current speed, average Speed, maximum speed, riding distance, total distance, 6KM/H power assist, cruise function, etc.

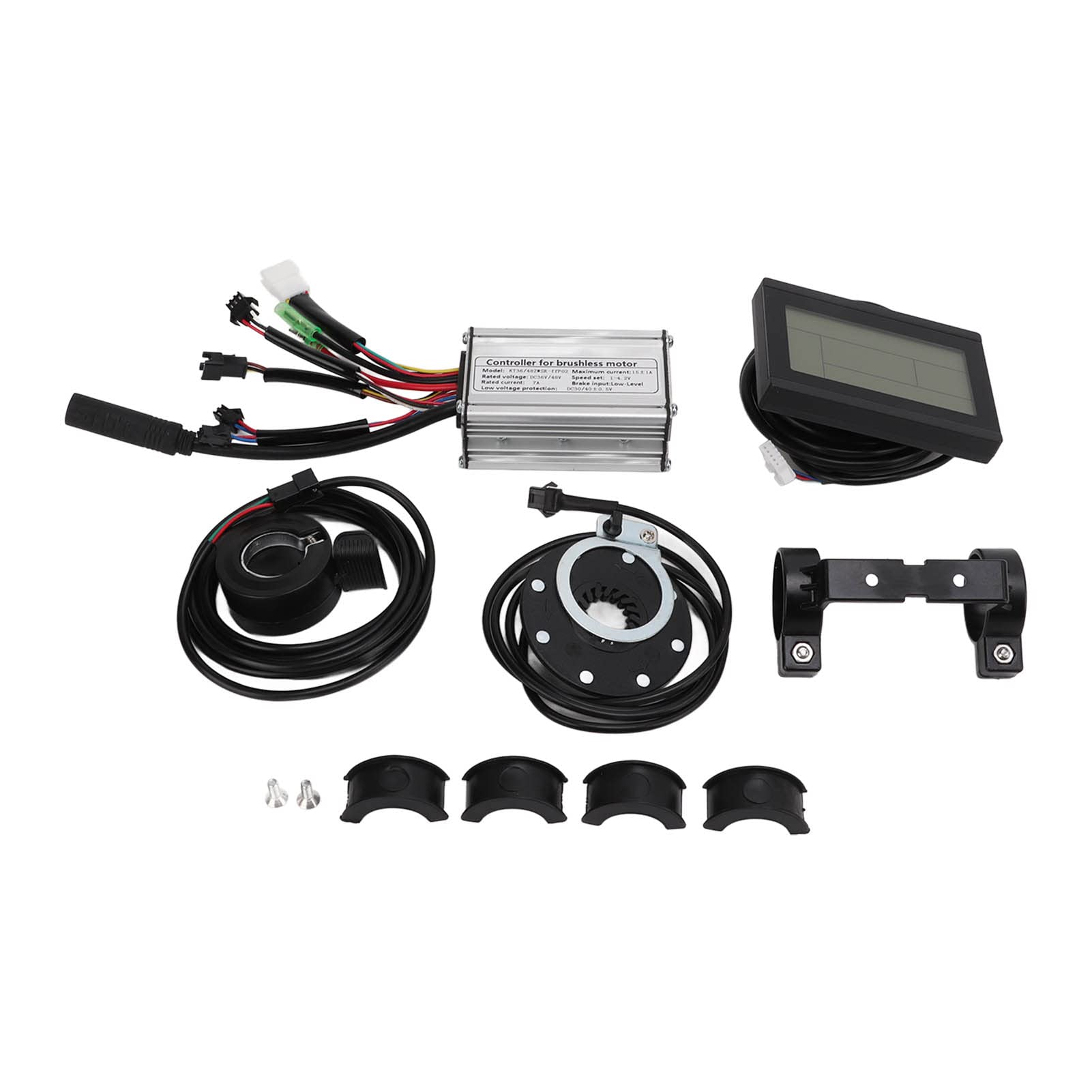

SUITABLE FOR: The kit includes 15A ordinary square wave controller, LCD3 display meter, 130X throttle accelerator, 8C power assist sensor combination kit, suitable for 36V/48V 250W brushless motor electric bicycle conversion.
CONTROLLER WIRING INSTRUCTIONS: The controller can be connected to the corresponding line interface to realize the function; just define the wiring according to the line color of the controller. 1. Black single large end wire: Waterproof motor wire; 2. Red and black single large end wire: Power cord; 3. Red blue black green yellow single row.
WIRE PORT: LCD display meter cable. 4. Red and blue wire (two): Power off brake lever line; 5. Red and black wire: Throttle accelerator line; 6. Brown black yellow line: Power assist sensor line; For specific instructions, please refer to the manual. (Note: It needs to be used in conjunction with products that conform to the communication protocol. )
