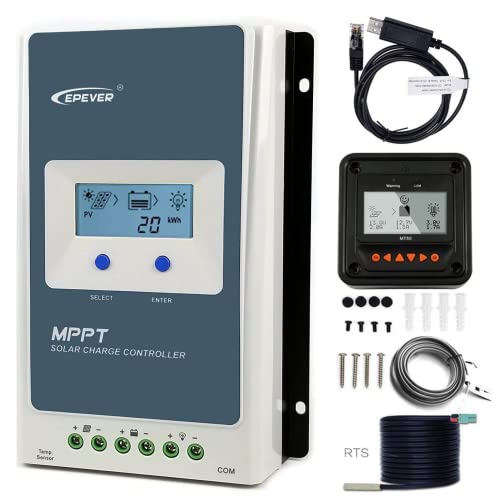

30A MPPT Solar Charge Controller - 12V/390W, 24V/780W, Max 100V PV Input - LCD Display for Lead-Acid & Lithium Batteries - Negative Grounded for Solar Panels - Perfect for Off-Grid Homes, RVs, Boats, and Camping Power Systems

Tracer AN series controller, based on multiphase synchronous rectification technology (MSRT) and advanced MPPT control algorithm, with dual-core processor architecture and common negative design, has the features of high response speed, high reliability, and high industrial standard. MSRT can ensure very high conversion efficiency in any charge power, which sharply improves the energy efficiency of solar system; Advanced MPPT control algorithm minimize the maximum power point loss rate and loss time, to ensure the tracking efficiency,corresponding speed as well as high conversion efficiency under high or low power, so that in any situation, Tracer AN products can rapidly track the maximum power point(MPP) of PV array to obtain the maximum energy of the panel. The load, utility or generator auto-control relays make it easy to compose the hybrid power system. So that can be widely used for various applications, e.g.solar RV, household system and field monitoring, etc. FEATURE Advanced MPPT technology & ultra-fast tracking speed, with tracking efficiency no less than 99.5% and will minimize the MPP loss rate and loss time, Maximum DC/DC transfer efficiency is as high as 98.6% , full load efficiency is up to 98%The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP.Auto control system to limit the charging power & current go over the rated value. Battery temperature compensation function and Automatic over-temperature power reduction function will prolong your battery life.Real-time energy recording and statistical function. One key to zero clearing PV energy function.Error LED indicator tell you what's wrong with your system.Isolated RS485 with 5VDC/200mA to protect output for no power devices with MODBUS protocolTo monitor or set the parameters by using the phone Apps or PC software.With Lithium battery activation functionUser programmable for battery types, load control etc.ELECTRONIC PROTECTION PV Over Current/power/PV Short Circuit/PV Reverse Polarity/Night Reverse Charging/Battery Over Voltage/Battery Over Discharge/Battery Overheating/Controller Overheating/TVS High Voltage Transients Negative Ground 30A MPPT Charge Controller Parameter Nominal System: 12 / 24V DC AutoRated charge/discharge current: 30A;Battery voltage range: 9V~32V,MPP Voltage range: BAT Voltage +2V～72VMax. PV open circuit voltage: 100V (92V at 25℃ temperature)Rated charge Power: 12V @ 390W | 24V @ 780WLCD backlight time: 60S (Default)Battery Type: Lead-acid battery: Sealed (default) /AGM /Gel / Flooded / User (9～17V/12V; 18～34V/ 24V);Lithium battery: LiFePO4 (4S/12V; 8S/24V), Li (NiCoMn)O2 (3S/12V; 6S/24V), User (9～34V)Self-consumption: ≤12mA;Discharge circuit voltage drop: ≤0.23VTemperature compensate coefficient: -3mV/ºC/2V(Default)Comm Negative:Ensure compatibility with any negative ground system, which is the standard and most conventional way of groundingPacking List: LCD Display PV ( Voltage, Current, Kwh ), One key to zero clearing PV energy function.BAT (Voltage, Current, Temperature ), Temp. compensation:-3mV/℃/2V(77℉) (default)Load (Current, Kwh, Load Limer), Check load timer to ensure if opening load output Solar Charge Controller Connection Recommended Wire Size: 8AWG (10mm2 )Mounting dimension:170x164mmRed wire connect “+” and Black wire connect “-”Ensure tighten wiresDimension: 228x164x55mm,Weight: 1.26kg Aluminum Alloy Heat Sink Excellent heat dissipation characteristicEnsure great airflow. Remove all the debris around the controller (leaving a space of approx. 5.91in) DIAGRAM OF CONNECTION MOUNTING CAUTION Risk of explosion! Never install the controller in a sealed enclose withflooded batteries! Do not install in a confined area where battery gas can accumulate.Risk of electric shock! The solar array high voltage can cause serious shock or injury. Make use of fuses/breaker or cover the entire solar array, prior to performing any work on change controller.The controller requires at least 150mm of clearance above and below for proper air flow. Ventilation is highly recommended if mounted in an enclosure.While wiring the controller do not turn on the breaker or fuse and make sure that the leads of "+" and "-" poles are connected correctly.A fuse which current is 1.25 to 2 times the rated current of the controller must be installed on the battery side with a distance from the battery not greater than 150 mm.If an inverter is to be connected to the system, connect the inverter directly to the batteryIf the PV array is reverse connected to the controller,1.5 times rated controller power (watts)from the PV array, will damage the controller.NOTE: When the PV modules are in series, ensure that the open-circuit voltage of the PV array does not exceed the "Max. PV open-circuit voltage" rating. Otherwise the controller may be damaged. (VOC Don't exceed 92V!) How to program for Lithium Battery？ Via PC (Accessories needed：RS485)Software download website: EPever official website or look for in the manual Would the unit be damaged if the battery polarity is reversed? It is required to connect the battery first, if the battery polarity is reversed in this step, the controller has the protection and would not be damaged. But if the user connects the PV first and then, unfortunately, connects the battery polarity reversed, the controller would be damaged. This is caused by lithium battery characteristics. 10A Waterproof Solar Charge Controller PowMr MPPT Charge Controller 40 amp 12V 24V auto EPEVER 5KW 48V dc to 230Vac with 80A MPPT controller inverter 5.5KW 48Vdc to 230Vac with 80A MPPT controller inverter 1200W Pure Sine Wave Inverter 12V DC to 120V AC Converter Buying Options Buying Options Buying Options Buying Options Buying Options Customer Reviews 4.2 out of 5 stars 216 2.3 out of 5 stars 2 3.0 out of 5 stars 1 2.6 out of 5 stars 5 — Support battery type Lead-Acid Battery Lithium, Sealed, Gel and Flooded battery Can work without battery or 48V Lead-acid and Lithium battery Can work without battery or 48V Lead-acid and Lithium battery 12V Lead acid/lithium
