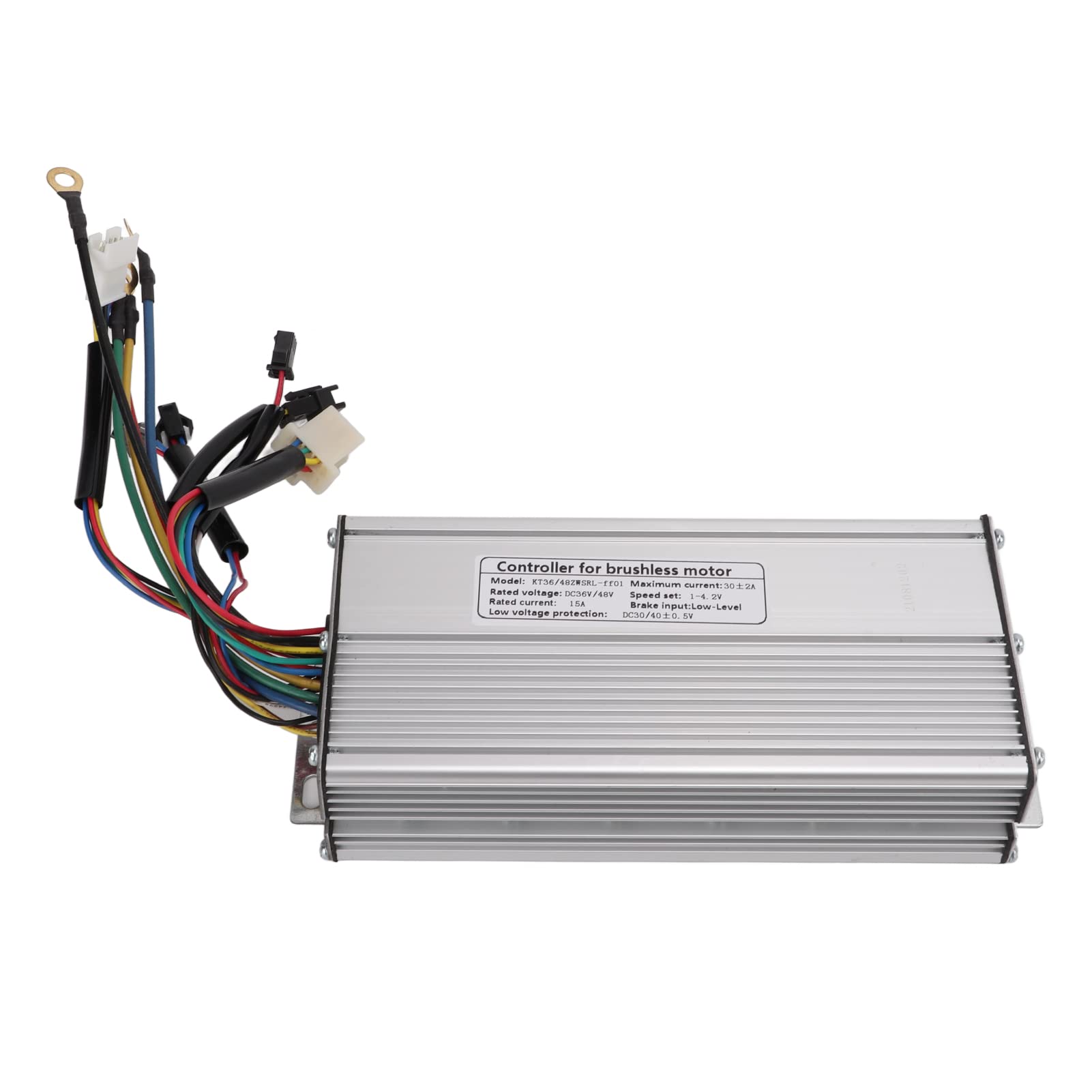

Alomejor 36V 48V 30A Brushless Motor Controller with LCD8H Display - Compatible with 1000W DC Motors, Electric Scooters & E-Bikes | Perfect for DIY Electric Vehicle Upgrades & Commuting
Free shipping on all orders over $50
7-15 days international
23 people viewing this product right now!
30-day free returns
Secure checkout
34430855
Description
How to Use: Controller wiring instructions: the controller can be connected to the corresponding line interface to realize the function, and the wiring can be defined according to the controller line color. 1. Yellow, green, blue single large end wire: motor wire 2. Red, black, blue, green and yellow double row five wire port: Hall motor wire 3. Red and black single large end wire: power cord 4. Red, blue, black, green and yellow single row five wire port: instrument cable 5. Red and blue lines (two): power off brake lever line 6. Red and black lines: throttle dial line 7. Brown black yellow line: Power assisted sensor line For specific instructions, please refer to the manual. Specification: Item Type: Electric Bicycle Controller Instrument Kit Color: As Pictures Shown Material: Aluminum Alloy + Plastic Weight: Approx.850g/30.0oz Size: Controller Box: Approx. 171x83x42mm/6.7x3.3x1.7in, Meter: Approx. 109x67mm/4.3x2.6in, Meter Cable Length: Approx. 179.5cm/70.7in Controller Connector Type: Ordinary Connector Controller Rated Voltage: DC 36V/48V Controller Rated Current: 15A Controller Maximum Current: 30±2A Controller Speed Setting: 1 4.2V Controller Brake Input: Low Level Controller Low Voltage Protection: DC 30/40±0.5V Applicable Motor Power: 1000W Package List: 1 x Controller 1 x LCD8H Meter 1 x Instrument Mounting Frame 4 x Instrument Mounting Bracket Gasket 2 x Instrument Mounting Frame Screw 1 x Instrument Manual 1 x Controller Wiring Manual
Features
GOOD HEAT DISSIPATION FUNCTION:Shell is made of aluminum alloy with groove design, which can protect the internal circuit and avoid thermal overload.Kit includes 30A ordinary controller and LCD8H display instrument, suitable for 36V/48V 1000W DC brushless motor for electric bicycle lithium battery modification.
DISPLAY INSTRUMENT FUNCTION DESCRIPTION:Up Button, Switch Button, Down Button, Power Assisted Sensor Sign, Battery Capacity Indicator, Power Display, Running Sign, One Way Time, Total Travel Time, Battery Voltage, Brake Display, 6km/h Thrust Assist, Riding Speed (Metric System), Maximum Speed, Average Speed, Travel Distance, Total Distance, Backlight and Headlights, Ambient Temperature in Celsius, and Ambient Fahrenheit.
DISPLAY INSTRUMENT FUNCTIONS:Up button, switch button, down button, PAS sign, battery capacity indicator, running sign, battery voltage, ambient temperature in celsius, and ambient fahrenheit.
LCD8H DISPLAY:Meter has a variety of functions, allowing you to more easily view the data on the panel. When riding bicycle, it will display a lot of useful data on your bicycle.
DRIVING DATA DISPLAY:Such as power display, backlight display, headlight display, brake display, one way time, total travel time, current speed, average speed, maximum speed, total one way distance, 6KM/H thrust assist.
