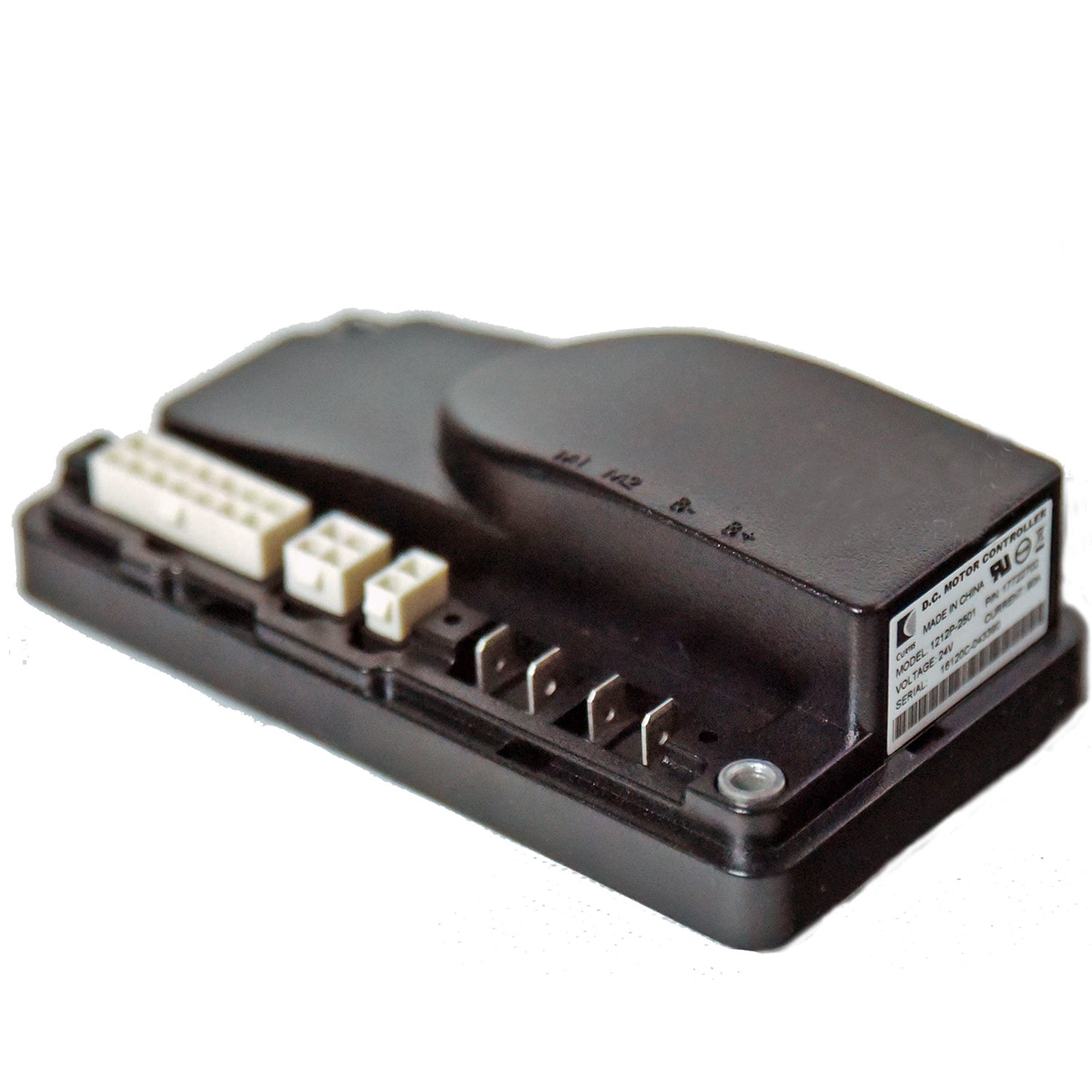

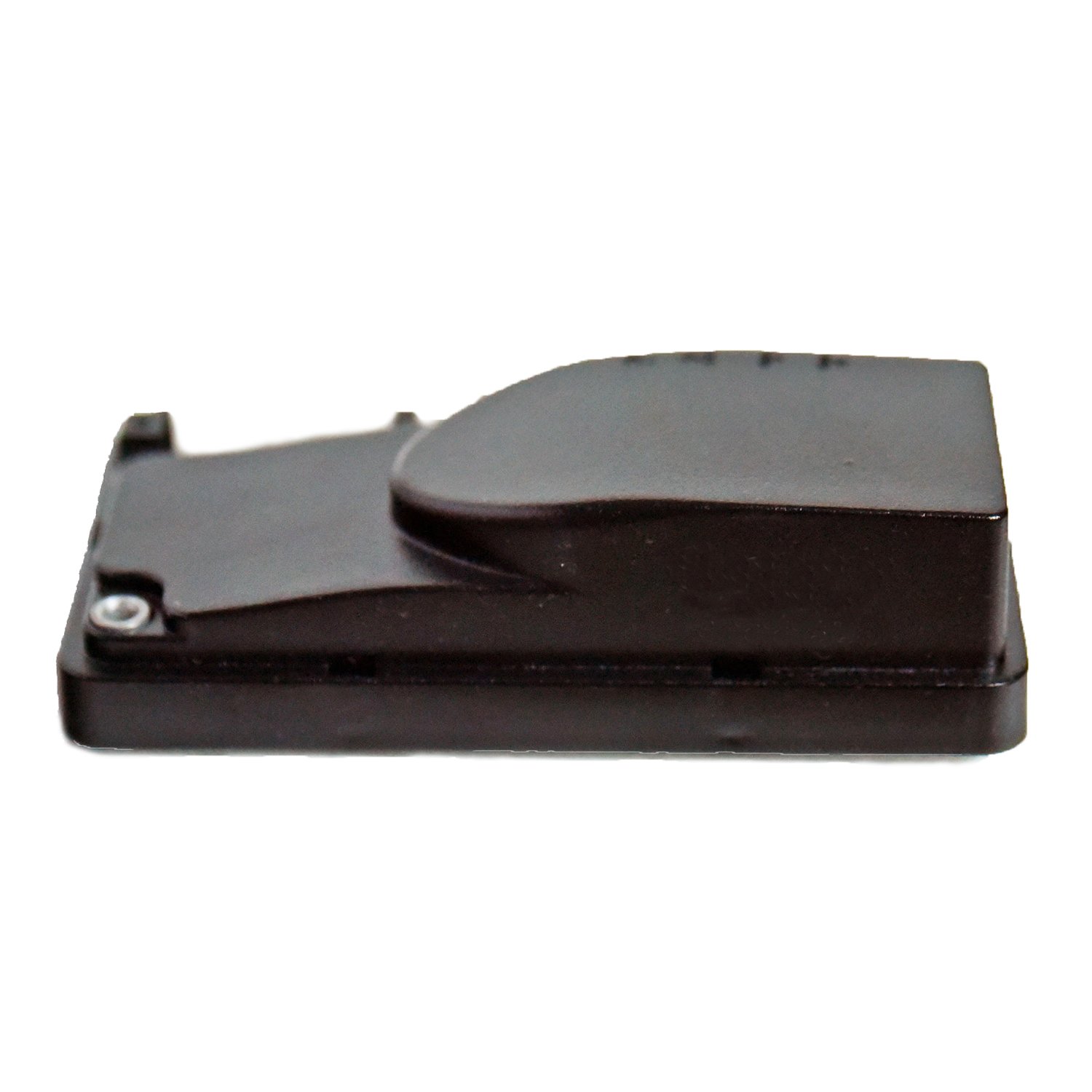

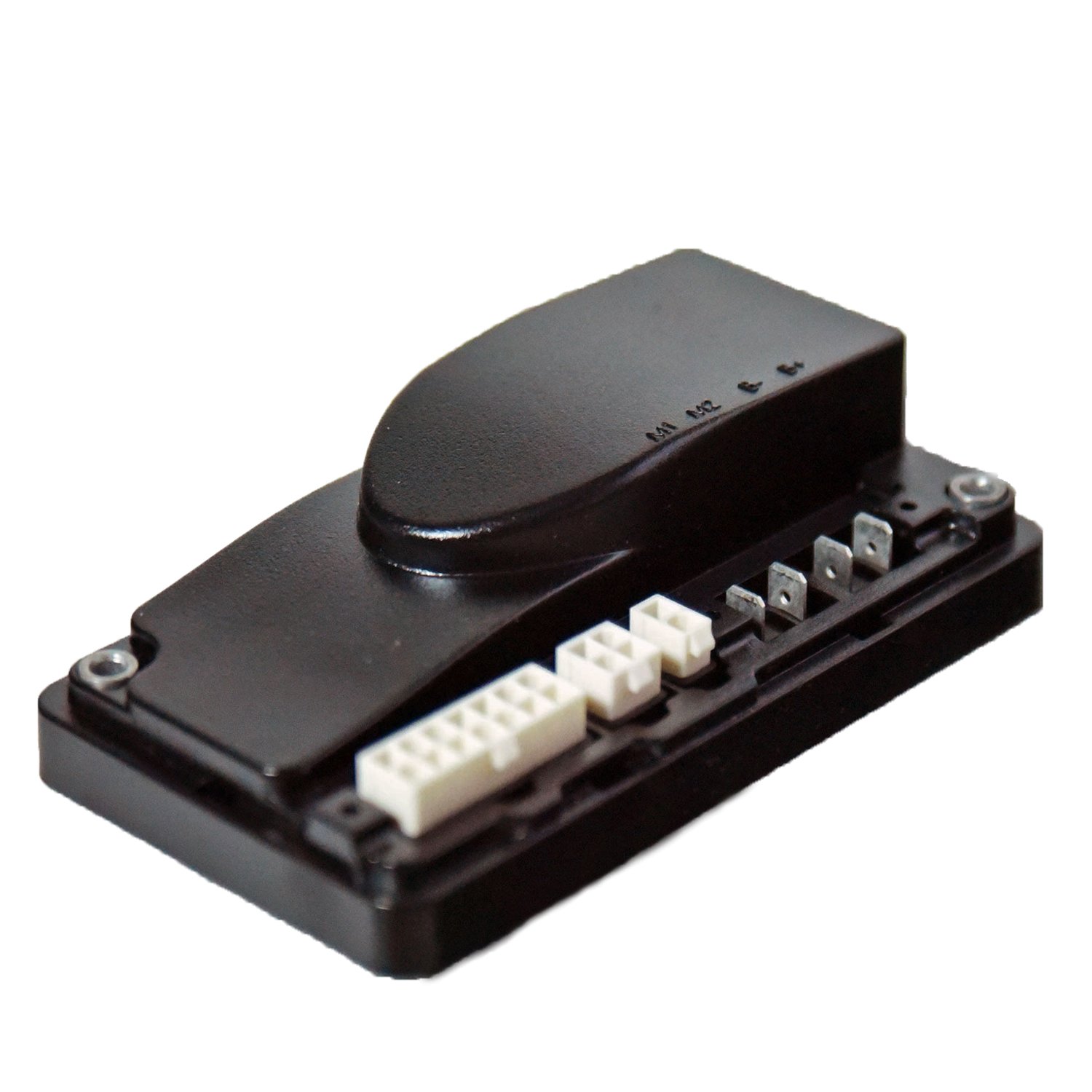

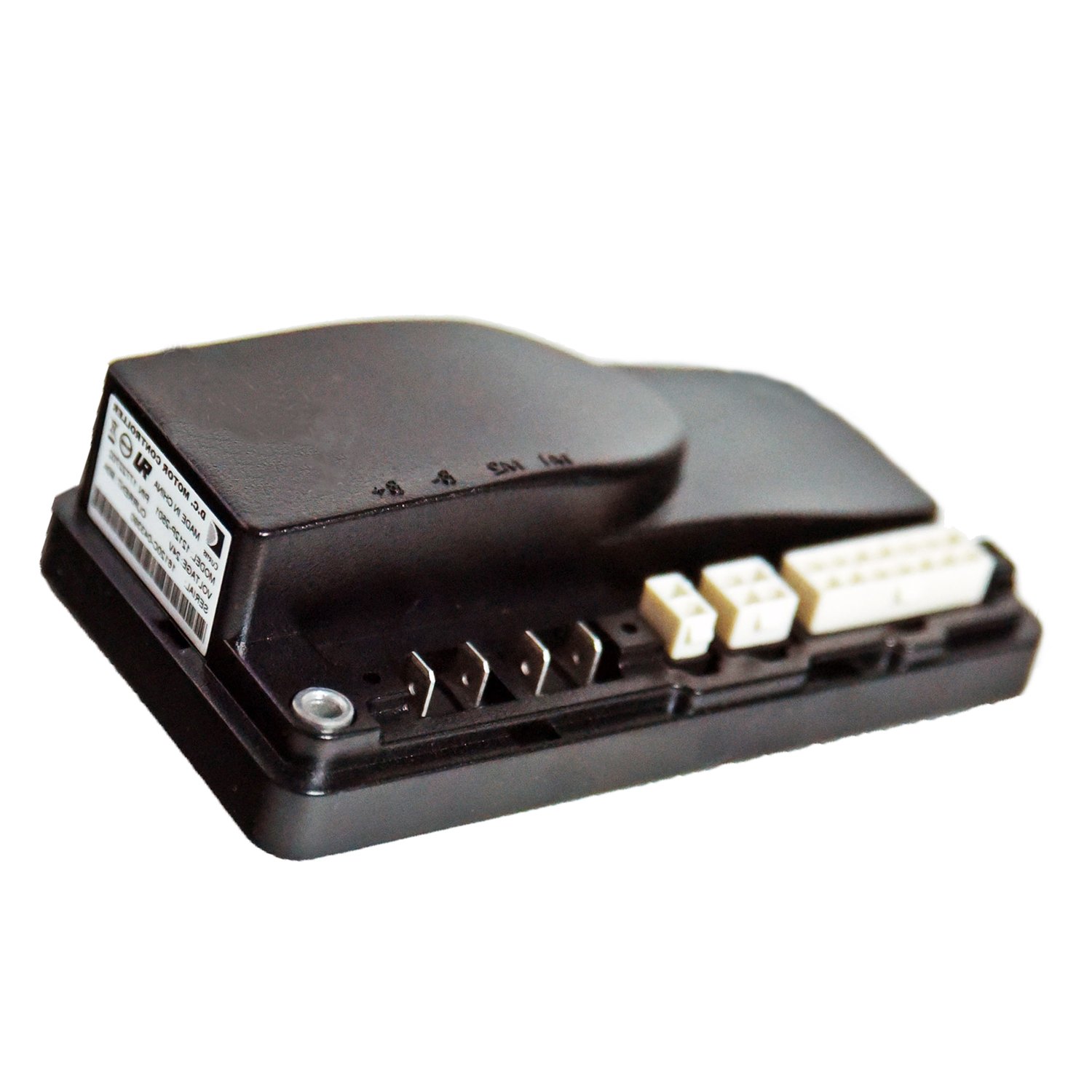

CURTIS 1212P-2501 24V/90A Permanent Magnet Motor Speed Controller for Forklifts - Heavy Duty Industrial Use in Warehouses & Material Handling

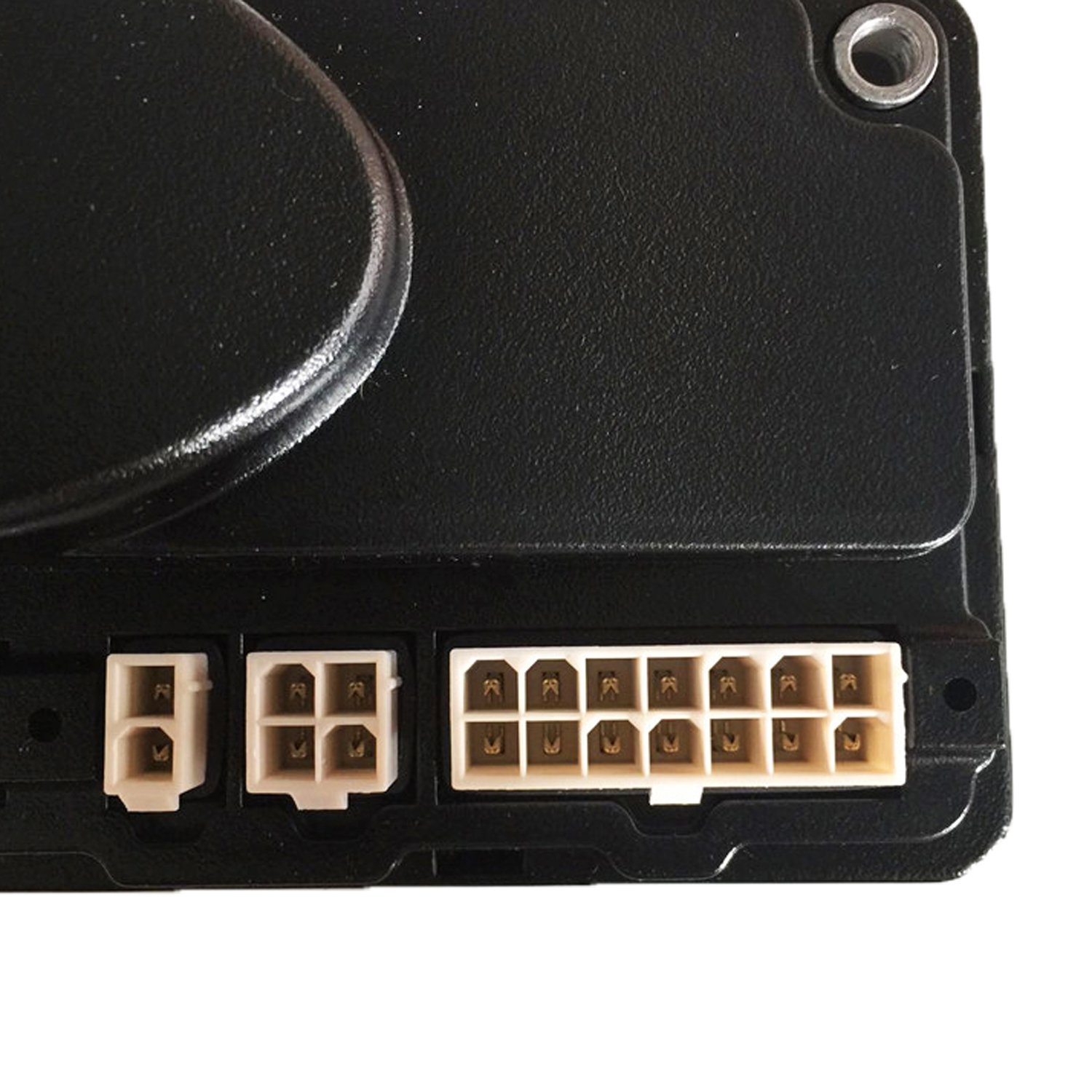

Notice: For the buyer without CONTROLLER APPLYING EXPERIENCE, please consult your cart/motor dealer and read carefully the CURTIS 1212&1212P Controller Manual before making the purchase. Key Features: CURTIS Model: 1212P-2501 Norminal Battery Voltage (Volts): 24V 10 Second Current Rating (amps): 90 2 Minute Current Rating (amps): 50 1 Hour Current Rating (amps): 20 Peak Boost Current (amps): 90 Max Boost Current Duration: 10 Second Minimum motor resistance: 120 mΩ B+, B- logic pin current (max.): 9 A (pins 7 and 13 on 14-pin connector) KSI input current (typical): 80 mA Logic input current (typical): 1 mA Horn output current (max.): 15 mA BDI output voltage, resistance (max.): 0–5 V, 10 kΩ LED output current (max.): 15 mA Electromagnetic brake coil resistance (min.): 32 Ω PWM operating frequency: 15.6 kHz Electrical isolation to heatsink (min.): 500 VAC Undervoltage cutoff: 14 V Overvoltage cutoff: 34 V Throttle Type: By default, the Throttle Type of controller 1212P-2501 is set as Type 7 (7 = single-ended; neutral when wiper ≤ PotLow). The 1212P-2501 controller can accept inputs from both 5kΩ, 3-wire pot throttles and voltage throttles. Set the throttle type parameter to match the throttle used in your application. 5kΩ, 3-wire pot throttles: 0 = wigwag 1 = inverted wigwag 2 = single-ended; neutral when wiper at PotLow 3 = inverted single-ended; neutral when wiper at PotHigh 4 = unipolar Voltage throttles 5 = wigwag 6 = inverted wigwag 7 = single-ended; neutral when wiper ≤ PotLow 8 = inverted single-ended voltage; neutral when wiper ≥ PotHigh 9 = unipolar Regulatory compliance: Designed to meet EN 12184, EN 55022, IEC 61000-6-2 & -4-6, and ISO 7176; FDA documentation filed; TüV Certification pending
