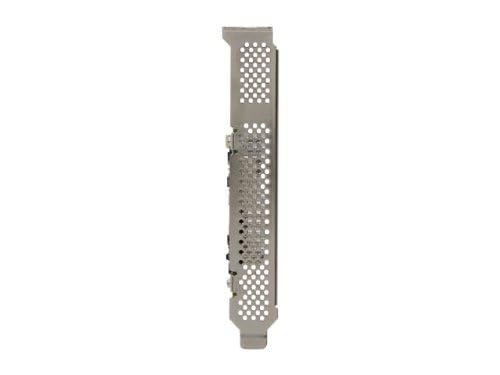

LSI MegaRAID SAS 9266-4i 4-Port 6Gb/s PCIe 2.0 SATA/SAS RAID Controller Card - Low Profile Design for Server & Workstation Data Storage Solutions

Specifications Mfr Part Number: LSI00305 (LSI9266-4I SINGLE ) Features: Four internal SATA+SAS ports 6Gb/s throughput per port LSISAS2208 Dual Core ROC 800MHz PowerPC MD2 Low profile (6.6" X 2.536") x8 PCI Express 2.0 host interface 1GB DDRIII cache (1333MHz) Optional CacheVault Module (LSICVM01) Optional battery backup unit (LSIiBBU09) Connect up to 128 SATA and/or SAS devices RAID levels 0, 1, 5 and 6 RAID spans 10, 50 and 60 Second generation 6Gb/s SATA+SAS with unprecedented levels of performance Ideal for internal storage environments using up to 128 SAS, SATA and solid state drives (SSDs) Unsurpassed IOPs performance and advanced software options help users realize full benefits of SSD deployments CacheVault technology option for greener, lower total cost cache protection Support for MegaRAID CacheCade Pro 2.0 read/write caching software to accelerate I/O performance of existing HDD arrays using SSDs as high-performance cache Meets high I/O transaction demands of database and datacenter applications Provides the sustained data transfer rates and high sequential bandwidth to meet processing requirements of digital media, video and imaging environments Connectors: 4x SAS SFF-8087 internal connectors Device Support: Up to 128 SAS and/or SATA devices Host Bus Type: PCI-Express 2.0 x8 compliant Data Transfer Rates: Up to 6Gb/s per port I/O Processor/SAS Controller: LSISAS2208 Dual-Core RAID on Chip (ROC) Cache Memory: 1GB DDR3-1333 SDRAM integrated RAID Data Protection Features: RAID levels 0, 1, 5 and 6 RAID spans 10, 50 and 60 Online Capacity Expansion (OCE) Online RAID Level Migration (RLM) Auto resume after loss of system power during array rebuild or reconstruction (RLM) Single controller Multipathing(failover) Load balancing Configure stripe size upto 1MB Fast initialization for quick array setup Check Consistency for background data integrity SSD Support with SSD Guard Patrol read for media sc
