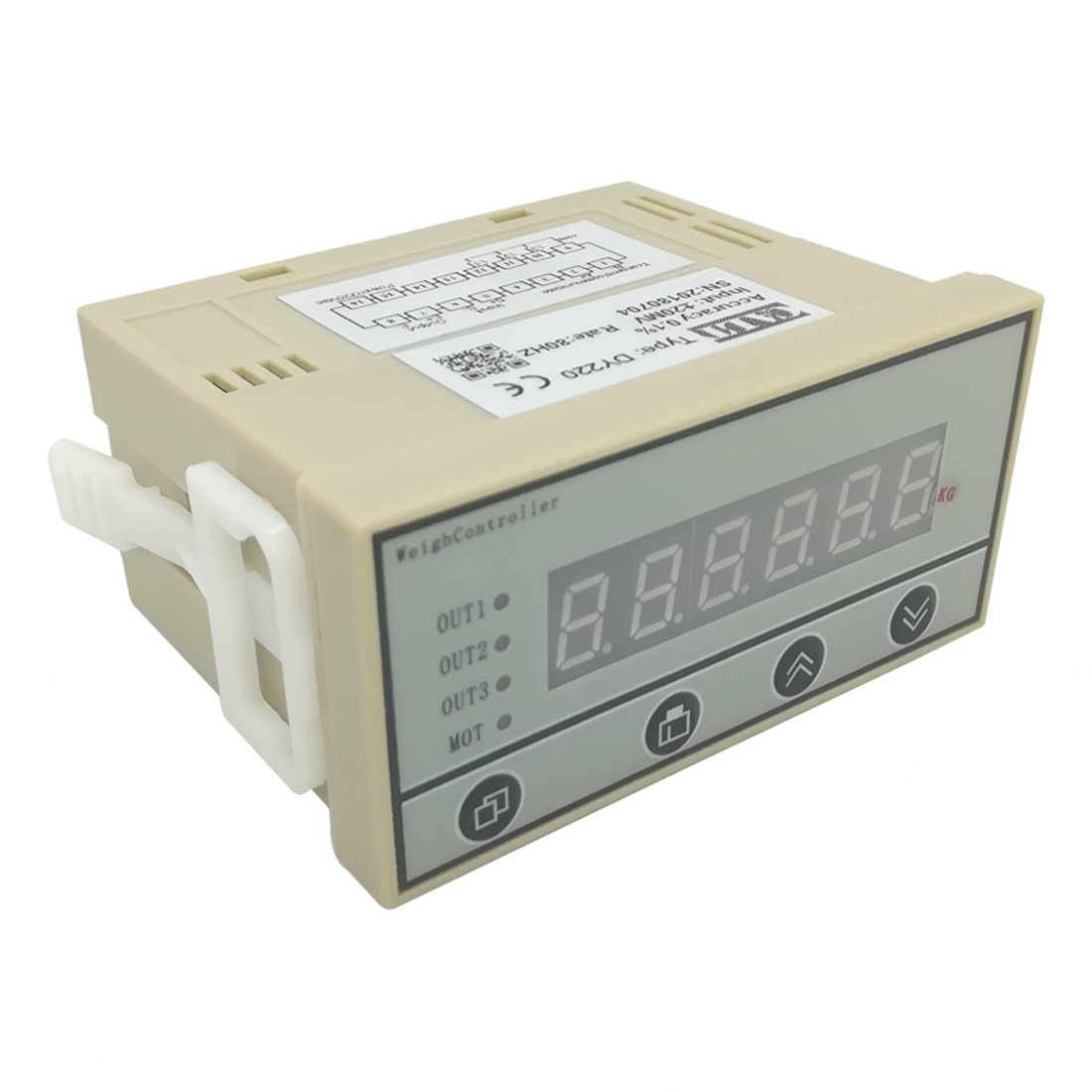

DY220 Load Cell Controller Indicator - Digital Weight Display for Batching, 4-20mA Output - Perfect for Industrial Weighing, Food Processing, and Material Handling Applications

DY220 Load Cell Indicator sampling rate up to 80 times / secondpush pull force indicatorinput voltage:100-230Vac The mentioned above is specifications about DY220 weight indicator Simple comparison output method (this is the standard way) Function description: The 3 outputs of the meter can be set to be more than comparison or less than comparison. The output is valid when the measured value is more than the upper limit minus hysteresis, and the output is invalid when the measured value is less than the upper limit. When the output is set to be less than the comparison, the output is valid when the measured value is less than the lower limit, and is invalid when the measured value is more than the lower limit plus hysteresis. Input start working mode (optional) Function description: In this working mode, short-connect the 3 and 4 terminals of the instrument within one second, can start the first and second group of relay closure and output effectively. When the measured value is more than the set value, the relay disconnect output is invalid until the next time, short connect the 3 and 4 terminals to output a valid bit for one cycle. This working mode is often used for single material loading stop, liquid filling and other batching occasions, which can make the supporting electronic control simpler and more convenient and efficient. Peak holding mode (optional) Function description: This mode of operation, by pressing the K3 key, can be switched to AXXXX (the peak measurement interface), which can maintain the last peak value, when the next measurement value is more than the ED-03 parameter (this is the peak threshold parameter) The last peak can be automatically overwritten to maintain this peak.
