POWLAND 60A MPPT Solar Charge Controller - 12V/24V/36V/48V Auto, 150V Max Input with LCD Display - Intelligent Regulator for Sealed/Gel/AGM/Flooded/Lithium Batteries - Perfect for RV, Marine, Off-Grid Solar Systems & Home Energy Storage
Free shipping on all orders over $50
7-15 days international
13 people viewing this product right now!
30-day free returns
Secure checkout
10304993
Description

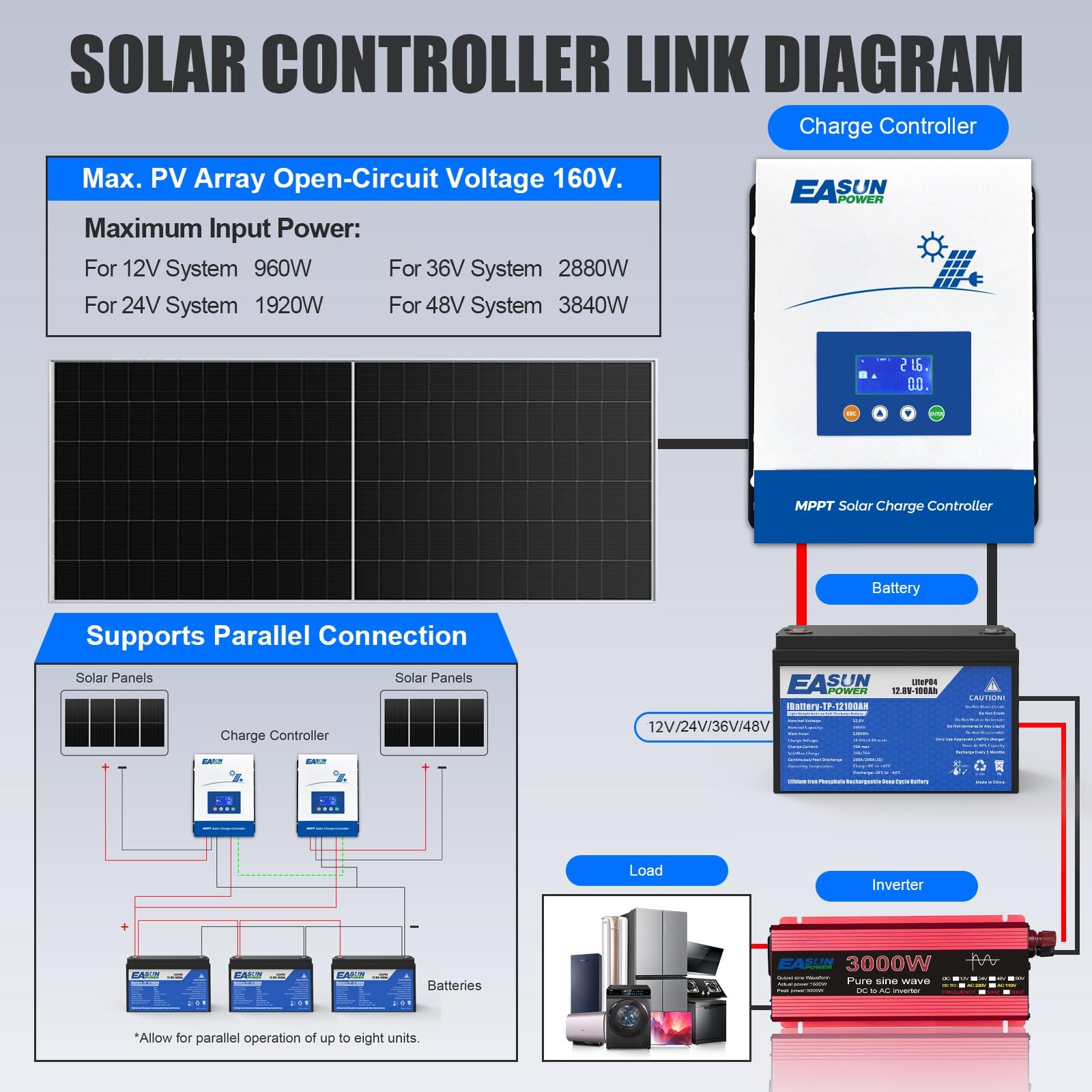

Previous page Next page 1 PROTECTION 2 EFFICIENCY POINT TRACKING 3 BATTERIES COMPATIBLE Previous page Next page 1 CHARGING MODE 2 MPPT CONTROLLER SETUP 3 LCD AND FUNCTION KEY 60A MPPT Solar Charge Controller Warm Tips: Solar controller link order: first connect to battery; then connect to PV array; finally connect to load appliance.Don't connect inverter, wind, alternator charger into the charge controller! Please connect the solar controller to the battery.If solar PV input voltage lower 3V or lower than batteries’ voltage. It may be appears to have been discontinued.Parameter Setting:Floating voltage > Low voltage reconnect > Low voltage discharge.When controller makes buzzing because the controller dissipate heat. It will be stop when temperature return to normal.Don't let the positive (+) and negative (-) terminals of the battery touch each other. System Voltage 12/24/36/48/Auto Auto Temperature Compensation -3mV/2V/ºC Overcharging Protection 36VSystem(48V) /48V System(64V) /12V System(16V)/24V System(32V) Battery Voltage Automatic 12V System(DC8.7V-DC15.5V);24V System(DC16V -DC31V);36V System(DC33V -DC41V);48V System(DC42V -DC64V) Max PV Input Power 900W/12V(PV voltage DС20V-DC150V);1800W/24V(PV voltage DС37V-DC150V);2600W/36V(PV voltage DС50V-DC150V);3200W/48V(PV voltage DС72V-DC150V) Max PV Input Voltage 150 Voc PV Utilization ≥99% Limited Current Protection 60A Max Efficiency ≥98.1% Size 7.91in*7.91in*3.16in Net Weight 1.72Kg Precautions before using a POWLAND MPPT 60A solar controller ? Users should first connect the battery before connecting the solar panel for the solar controller to function properly.Otherwise, it may cause irreversible damage to the controller. Why is there no voltage displayed after I connect the solar panel? It may be caused by low voltage. When connecting the PV, it is necessary to ensure that the PV voltage is 1.5 times higher than the battery voltage. Why does my controller display a current of Zero? When the battery is in float charging state or the solar panel is damaged, the charging current is problly to be less than 1ah. When the charging current is less than 1Ah, the charging current is displayed as ZERO. What you can get when you buy a POWLAND MPPT solar controller? MPPT Controller*1;User Manual*1;3M Sticker*1;External Temperature Sensor*1
Features
60A MPPT charge controller 4-level battery charging algorithm for fast, efficient, safe charging (batch charging, boost charging, float charging and equalizing), 60 Amp rate charging current.
High EfficiencyPowland solar controller applied the latest optimized MPPT technology to quickly track the max power point of the PV array in any environment and obtain the max energy of the solar panel in real-time, PV Utilization ≥99% Max Efficiency ≥98.1%
Multiple ProtectionSolar Charger Regulator 12V/24V/36V/48V Auto.Powland MPPT 60A solar controller with short circuit protection, open-circuit protection, reverse protection, over-load protection. Intelligent MPPT algorithm improves system efficiency and three-stage charging optimizes and prolongs the life span of the battery.
Wide Battery CompatibilityCompatible for PV systems in 12V, 24V, 36V and 48V, maximum charging current up to 60A; Support a wide range of lead-acid batteries including flooded, AGM, GEL, Lithium-ion batteries
LCD Display With an LCD screen and 4 buttons, it’s convenient for a dynamic display of system data and operating status.Could be widely used for various applications, e.g. solar RV, Solar household system etc.
